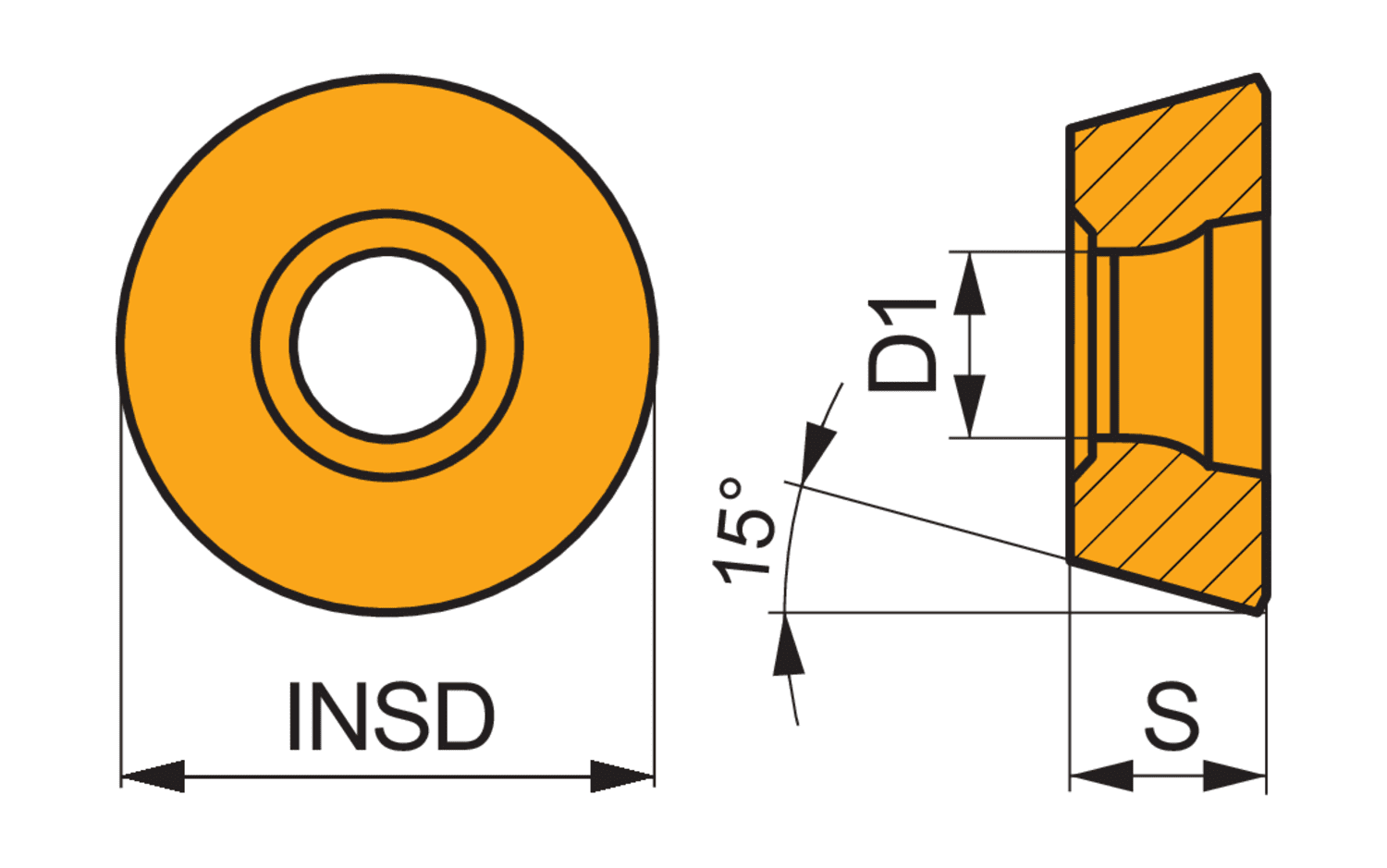

Single-sided milling insert RDHX 0702, round for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD07
- Product Name ISO: RDHX 0702MOT:M8310
- Ordering Code ANSI: RDHX 0702MOT:M8310
- EDP Number: 6755668
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Insert Dia. (Mm.) | 7 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | M8310 |
