Single-sided milling insert SDEW 0903 with a plane rake surface, square for a maximum depth of cut of .1772", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with chamfer mills SSD09
- Product Name ISO: SDEW 090308SN:M8330
- Ordering Code ANSI: SDEW 322SN:M8330
- EDP Number: 7447972
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

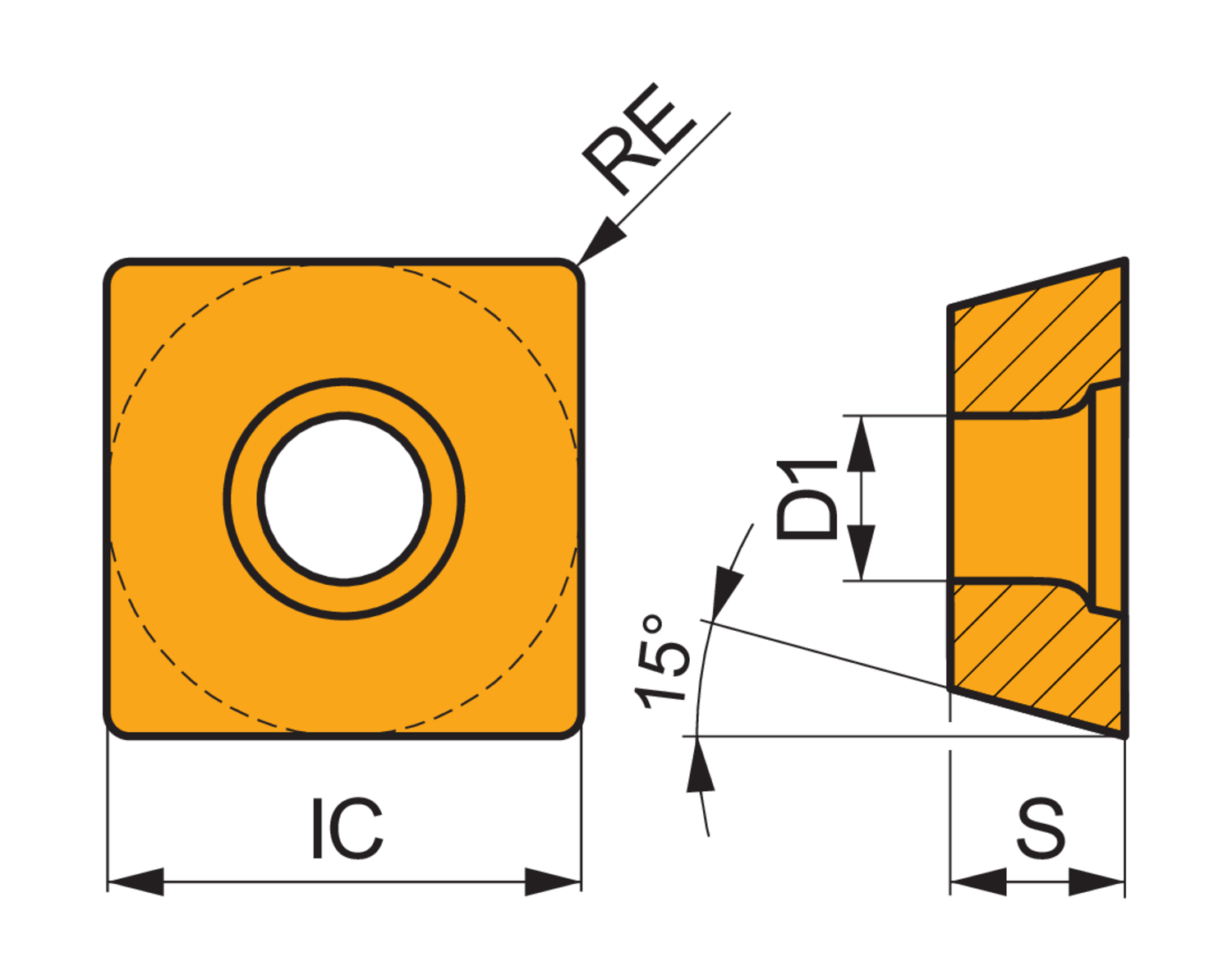

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.177 |
| Coating | M8330 |
