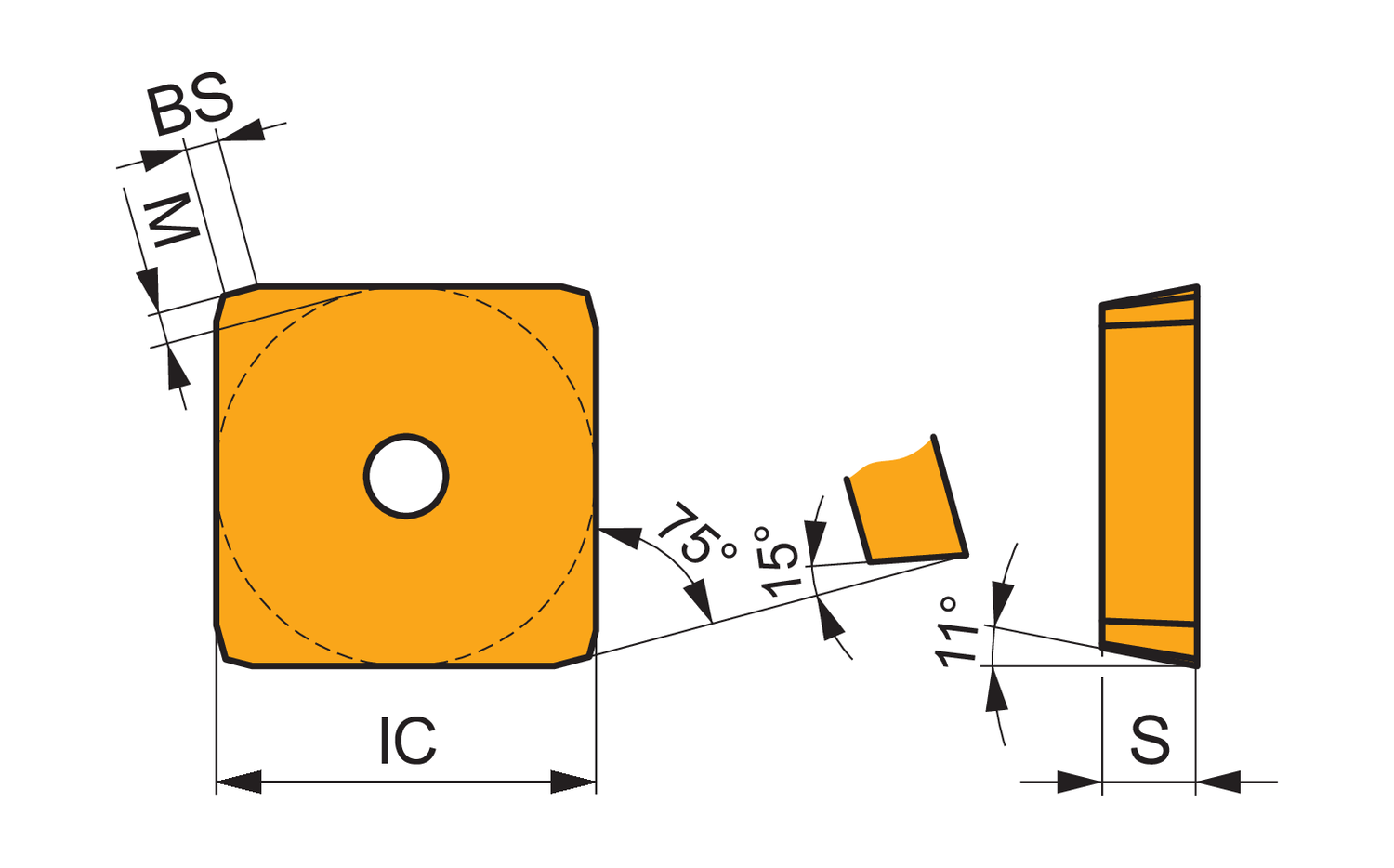

Single-sided milling insert SPKN 1504 with a plane rake surface, square for right hand cutting with a maximum depth of cut of .5118", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron
- Product Name ISO: SPKN 1504EDSR:8215
- Ordering Code ANSI: SPKN 53EDSR:8215
- EDP Number: 6753421
- Coating: 8215
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | 8215 |
