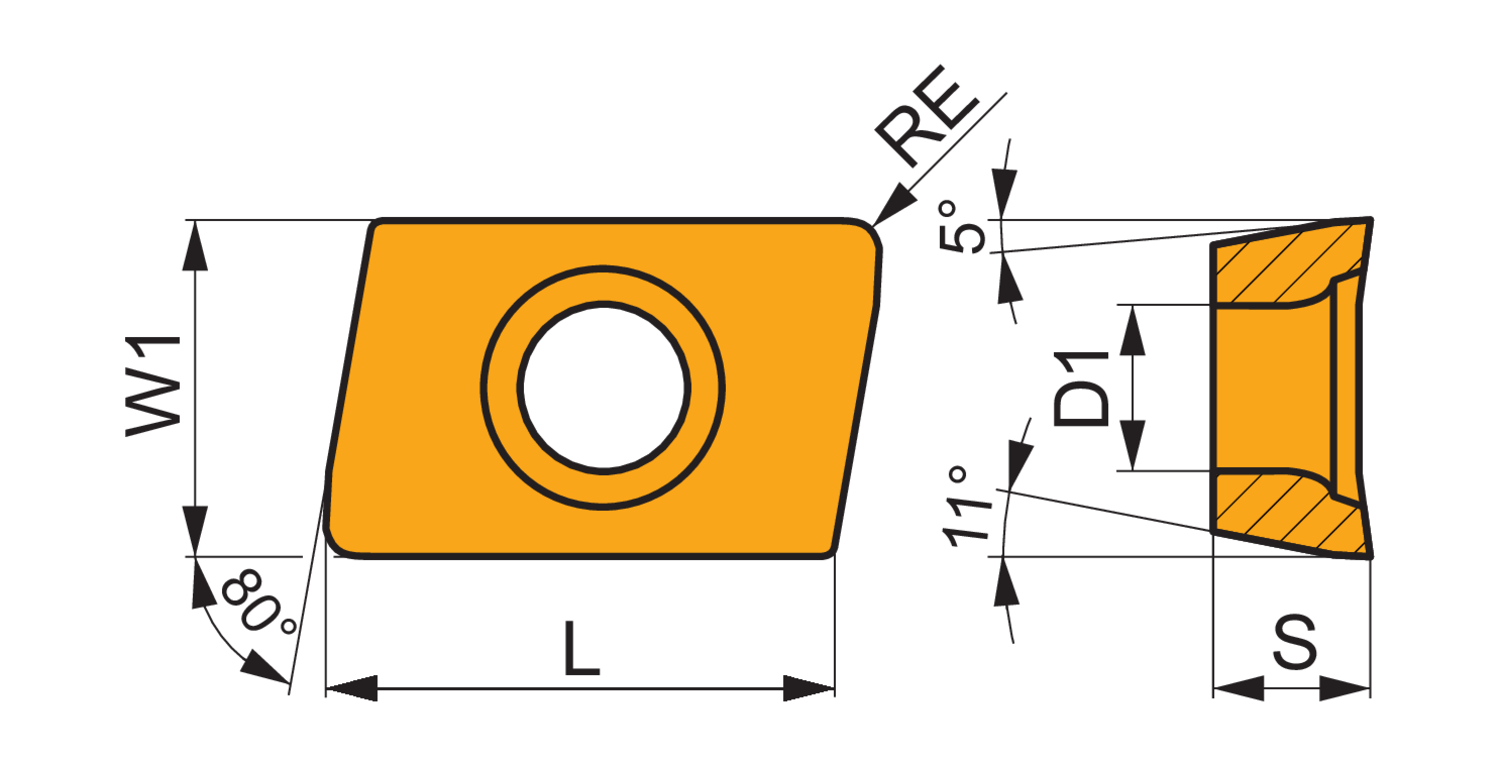

Single-sided milling insert XPHT 1604 with chip-breakers, special shape for a maximum depth of cut of .5906", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-H and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal
- Product Name ISO: XPHT 160408F-FA:HF7
- Ordering Code ANSI: XPHT 160408F-FA:HF7
- EDP Number: 6752075
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 15 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.591 |
| Coating | HF7 |
