Single-sided milling insert ZDCW 0703 with a plane rake surface, special shape for a maximum depth of cut of .0394", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-C, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with high feed cutters SZD07
- Product Name ISO: ZDCW 070304:M8345
- Ordering Code ANSI: ZDCW 070304:M8345
- EDP Number: 6755968
- Coating: M8345

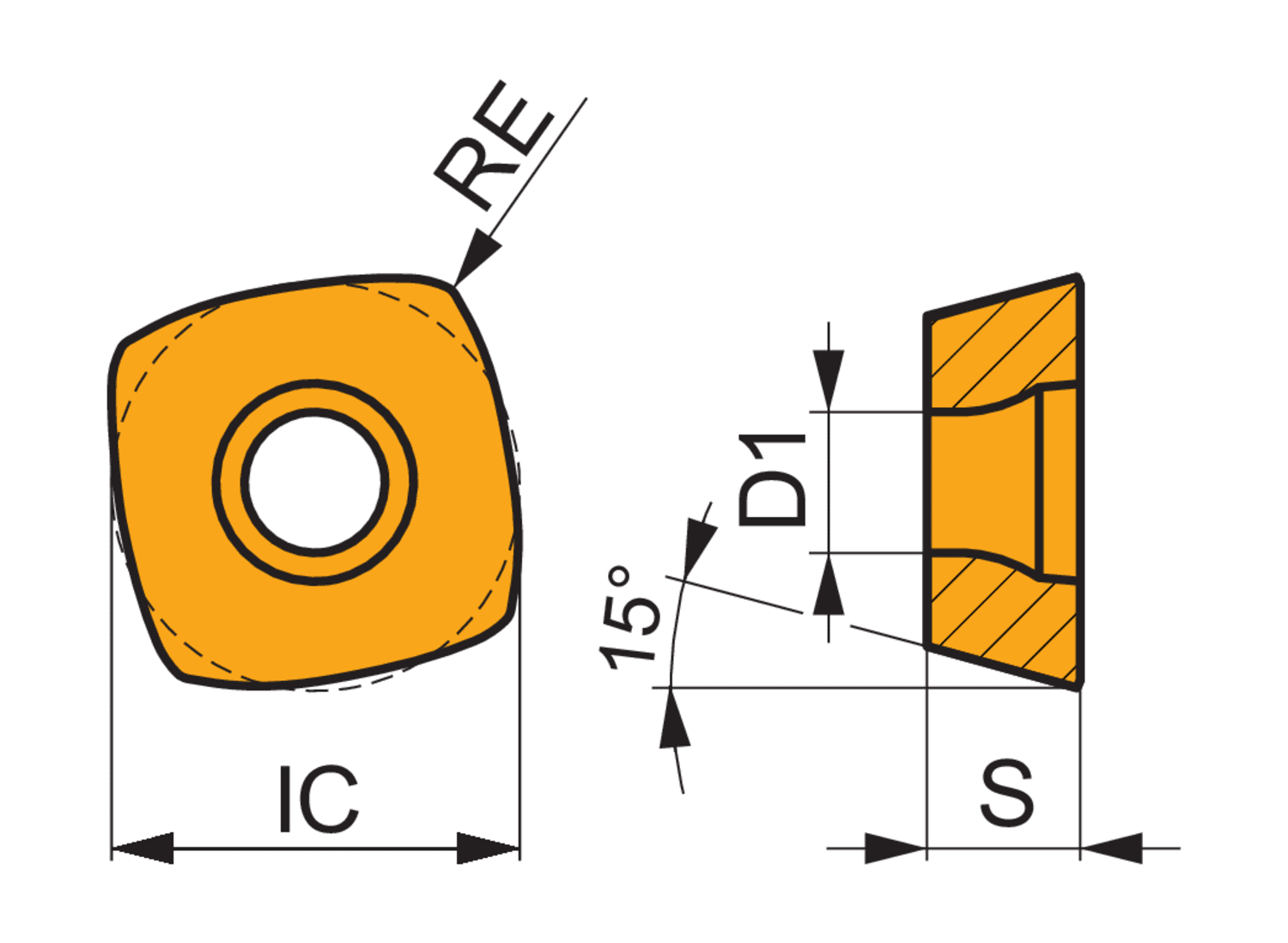

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.6 |
| Inscribing Circle Dia. (Mm.) | 6.8 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.039 |
| Coating | M8345 |
