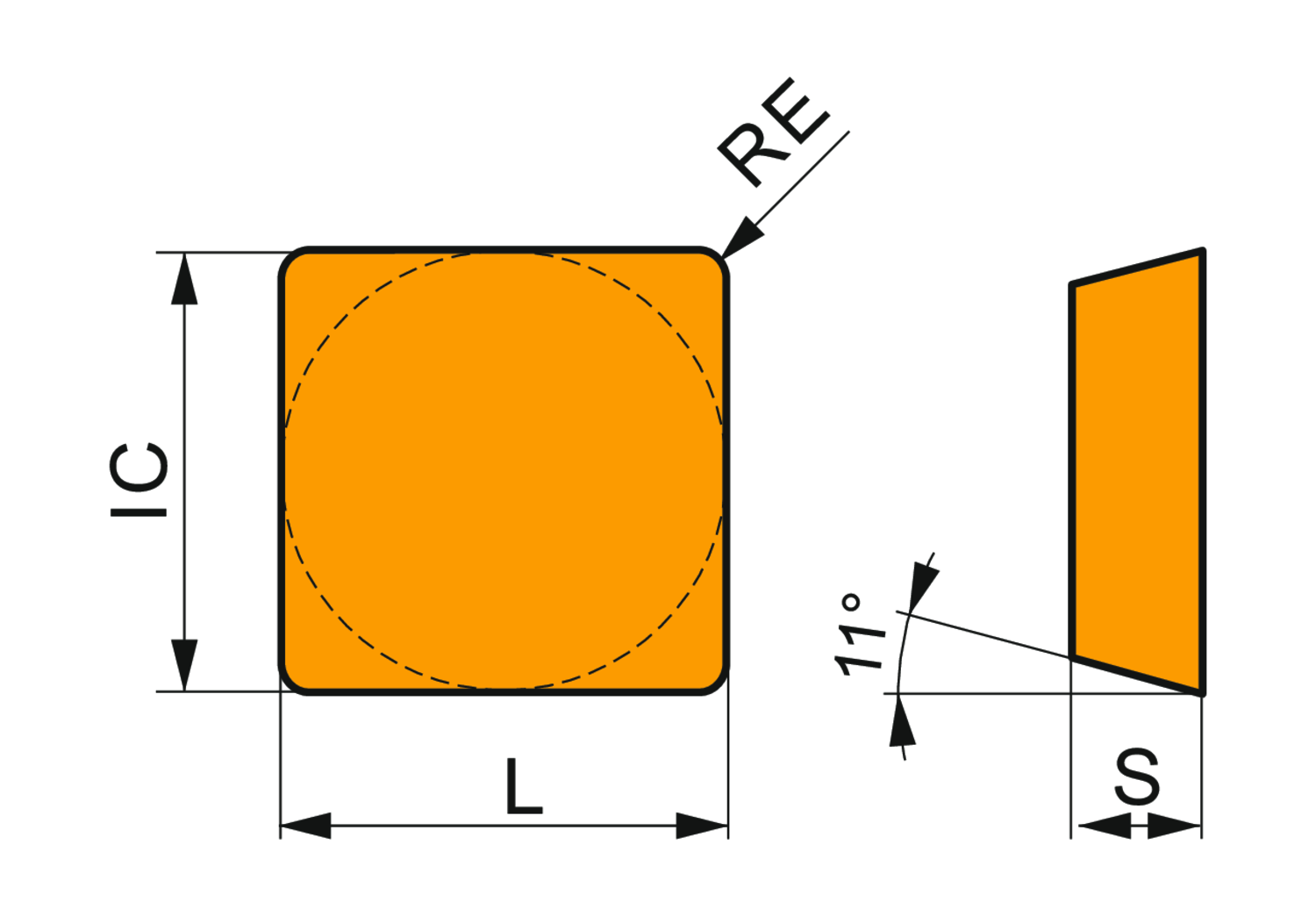

Single-sided positive turning insert, square with 11° clearance, inscribed circle diameter of 1/2", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 48, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20 - P40 and K25 - K40, for medium to heavy machining of steels and cast-irons
- Product Name ISO: SPMR 120308E-48:6640
- Ordering Code ANSI: SPMR 422-48:6640
- EDP Number: 6751690
- Coating: 6640
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 8 |
Corner Radius (Mm.) | 0.8 |
Inscribing Circle Dia. (Mm.) | 12.7 |
Insert Thickness (Mm.) | 3.18 |
Max Depth of Cut (In.) | 0.315 |
Insert Geometry | Positive |
Coating | 6640 |
