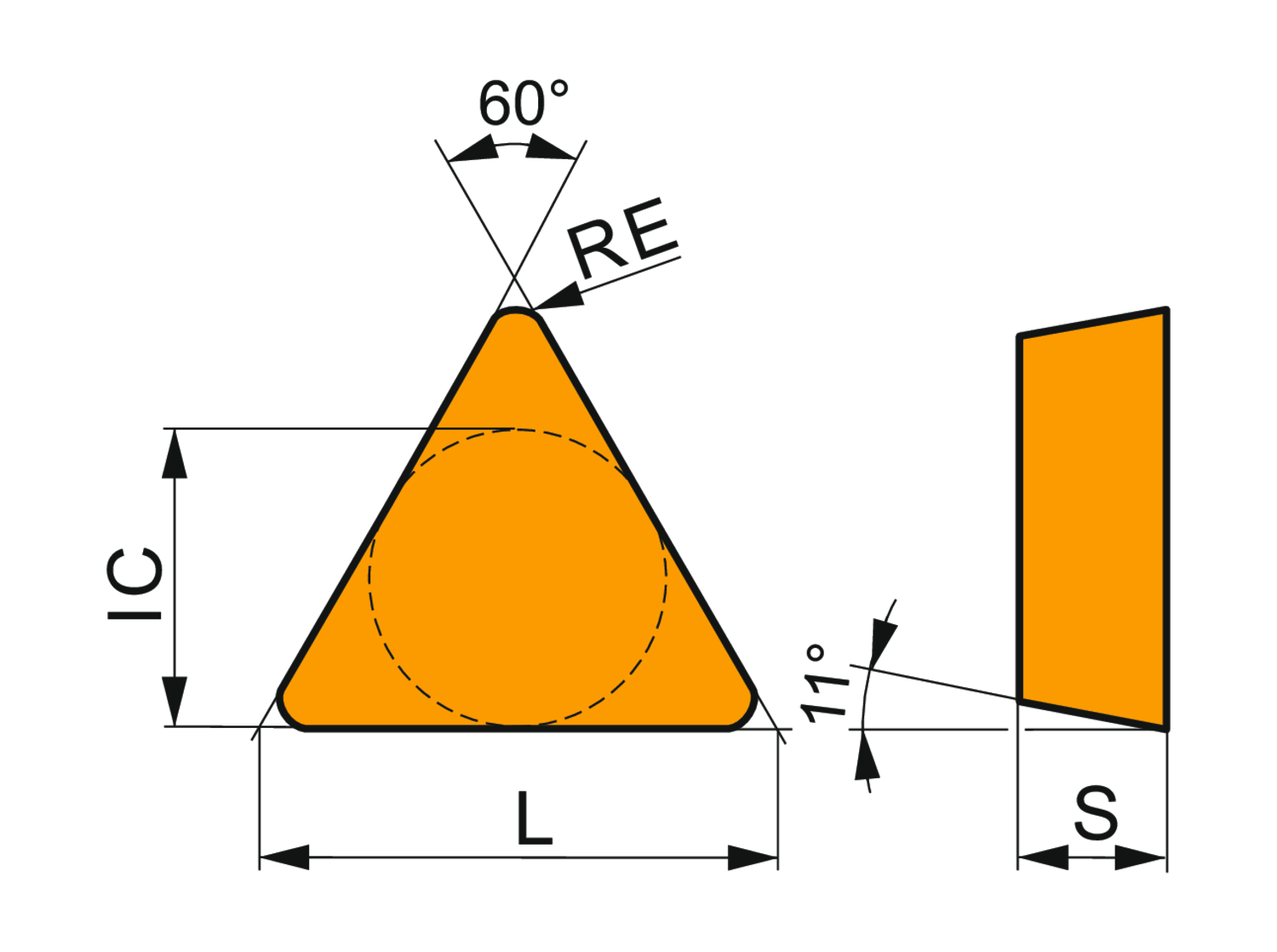

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 3/4", 1/4" thick, 5/64" nose radius, indexing accuracy according to ISO-tolerance class- U, with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO range K25 - K40, for medium to heavy machining of cast-irons
- Product Name ISO: TPUN 330620S:6640
- Ordering Code ANSI: TPU 645S:6640
- EDP Number: 6751574
- Coating: 6640
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 9.5 |
Corner Radius (Mm.) | 2 |
Inscribing Circle Dia. (Mm.) | 19.05 |
Insert Thickness (Mm.) | 6.35 |
Max Depth of Cut (In.) | 0.374 |
Insert Geometry | Positive |
Coating | 6640 |
