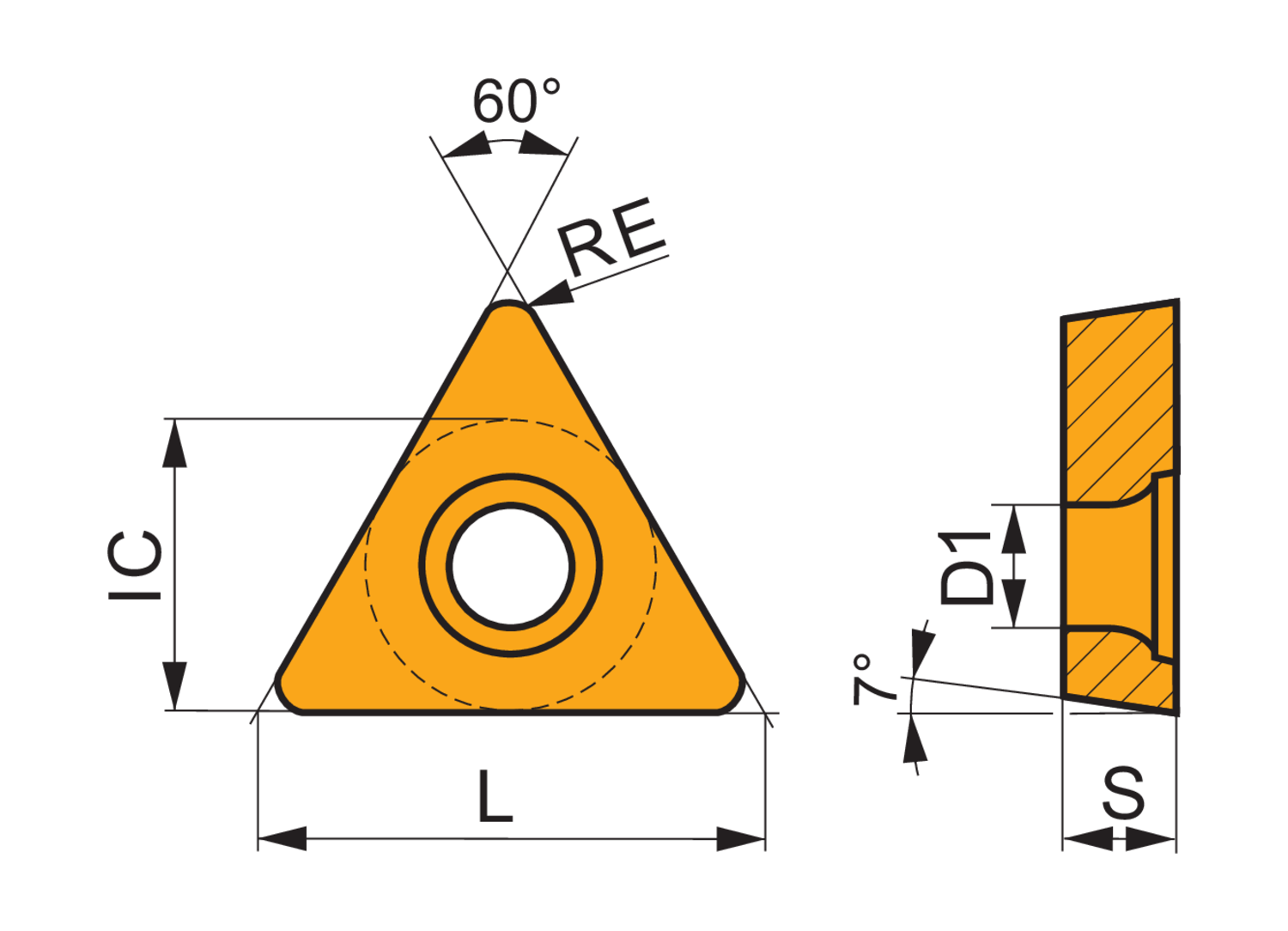

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels
- Product Name ISO: TCMT 110204E-UR:T8430
- Ordering Code ANSI: TCMT 21.51-UR:T8430
- EDP Number: 7973857
- Coating: T8430
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Insert Geometry | Positive |
| Coating | T8430 |
There are no reviews yet
Customers who bought this item also bought

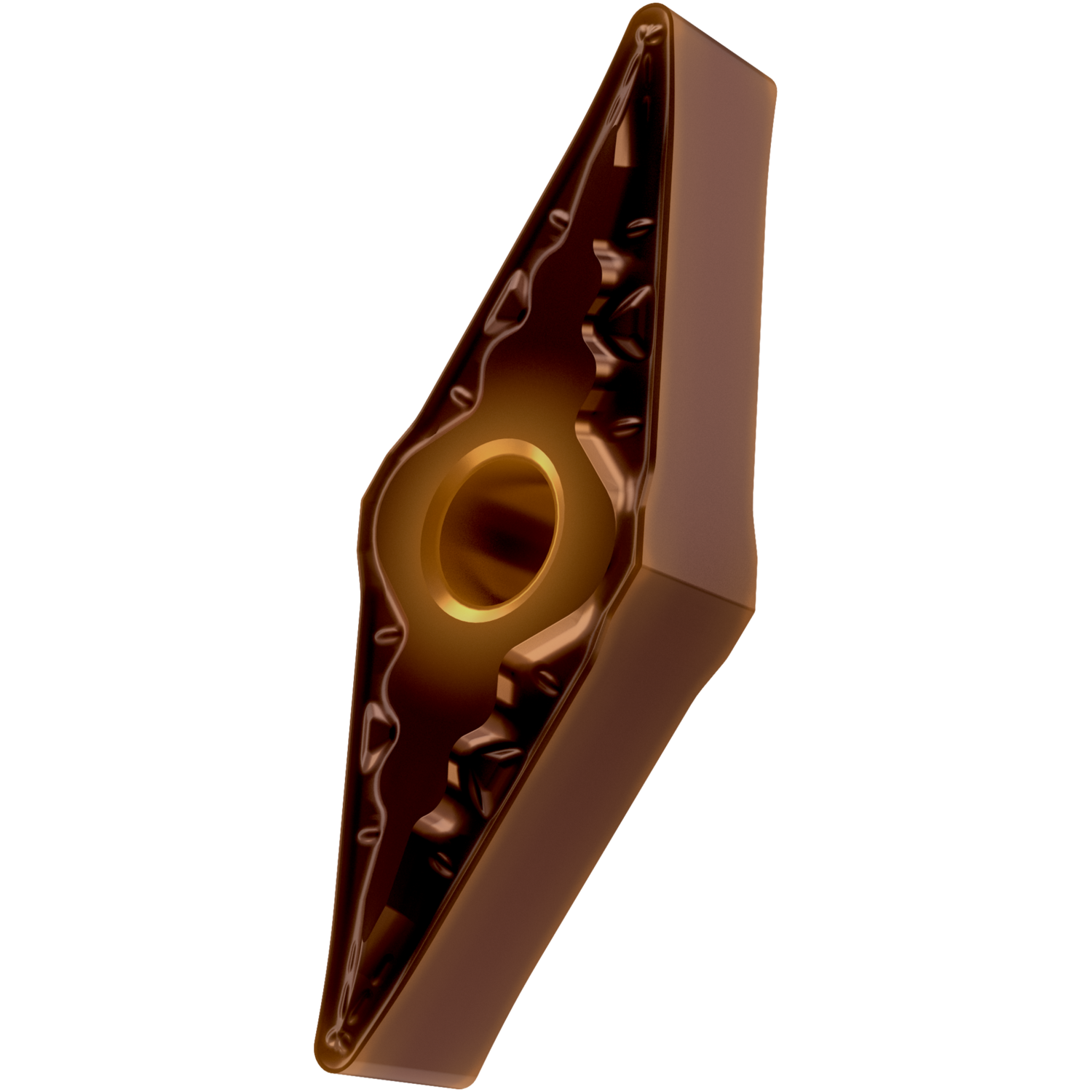

Turning Insert - Negative - VNMG 332-NM:T8430
