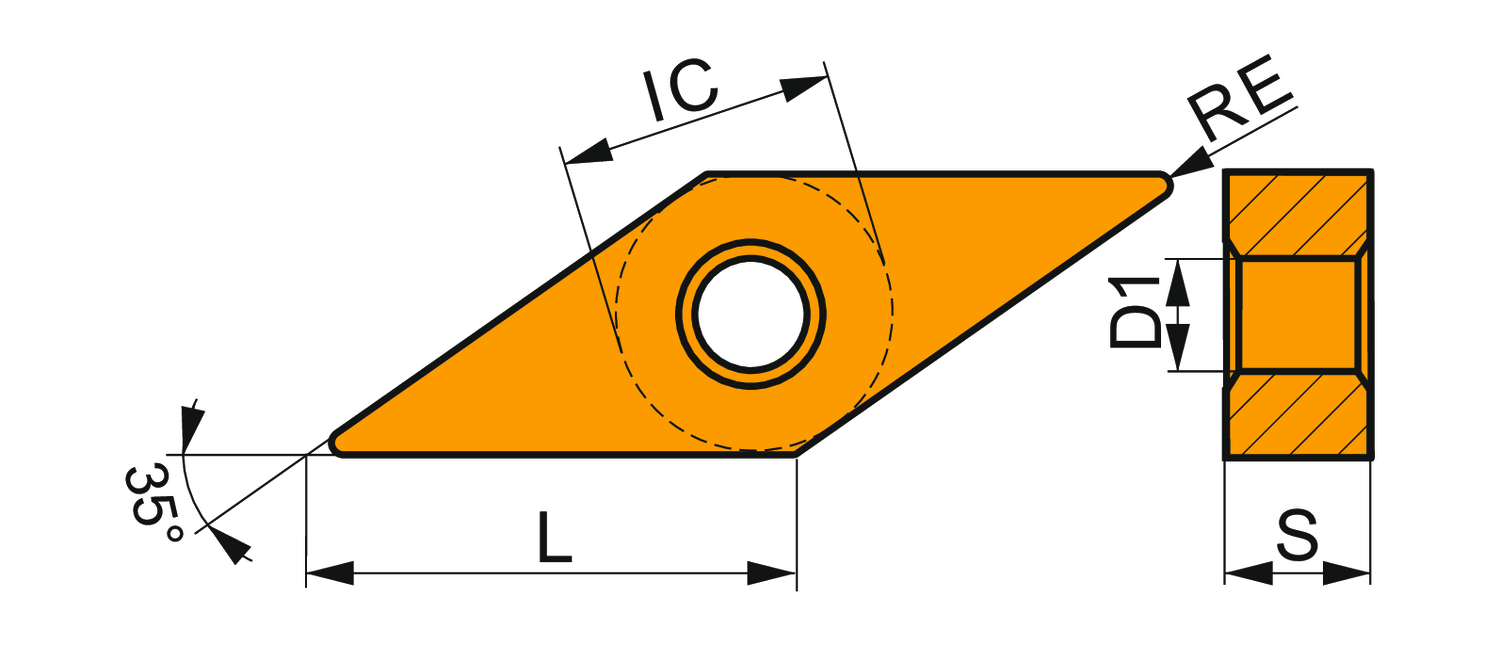

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels

• Product Name ISO: VNMG 160404E-FM:T8430
• Ordering Code ANSI: VNMG 331-FM:T8430
• EDP Number: 7977153
• Coating: T8430
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
