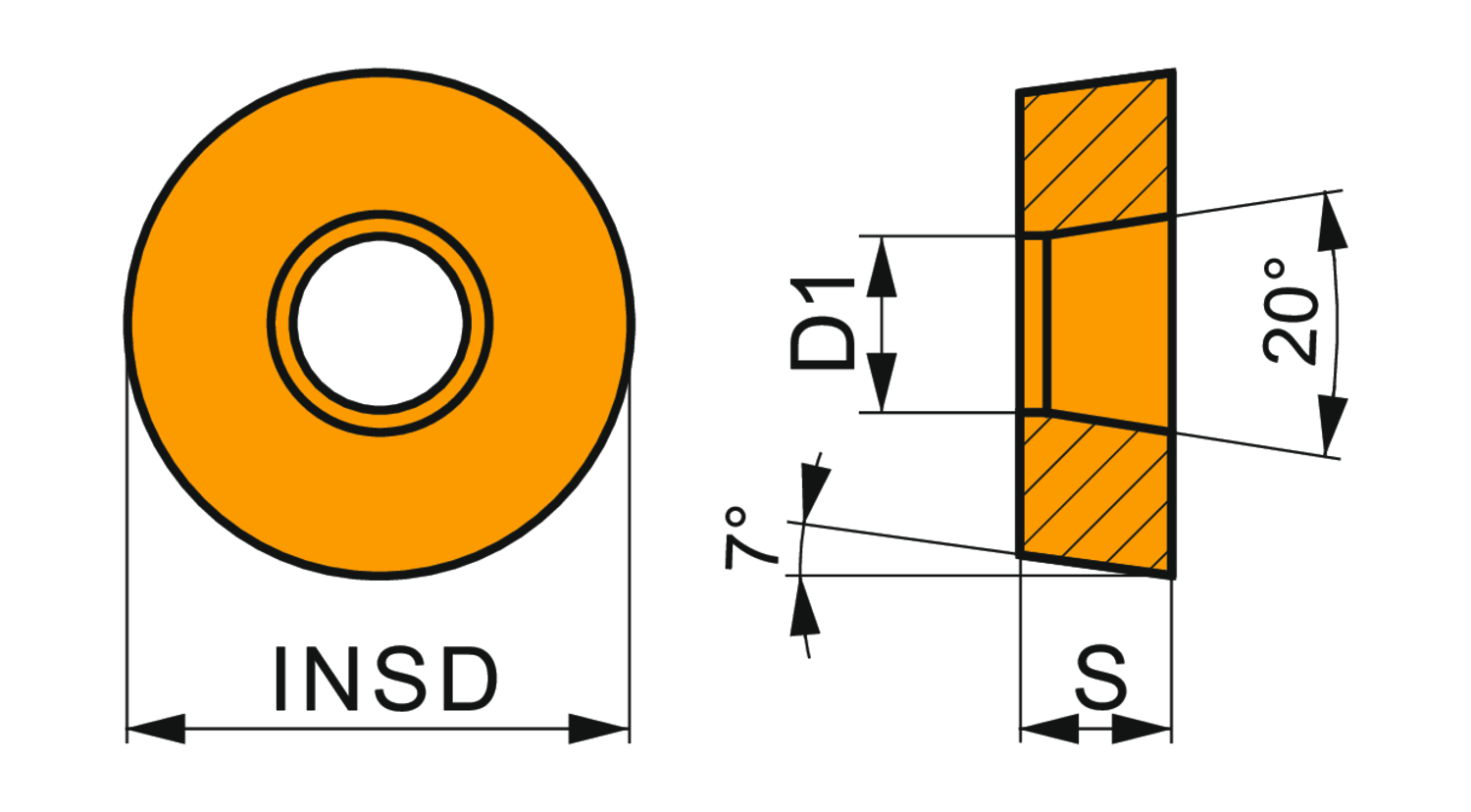

Special design positive turning insert, round with 7° clearance, a diameter of 25mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 37 with rounded cutting edges with facet, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for medium to fine machining of steels
- Product Name ISO: RCMX 2507MOS-37:6630
- Ordering Code ANSI: RCMX 2507MOS-37:6630
- EDP Number: 6751666
- Coating: 6630
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7 |
| Fixing Hole Diameter (Mm.) | 7.2 |
| Insert Dia. (Mm.) | 25 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.276 |
| Coating | 6630 |
There are no reviews yet
