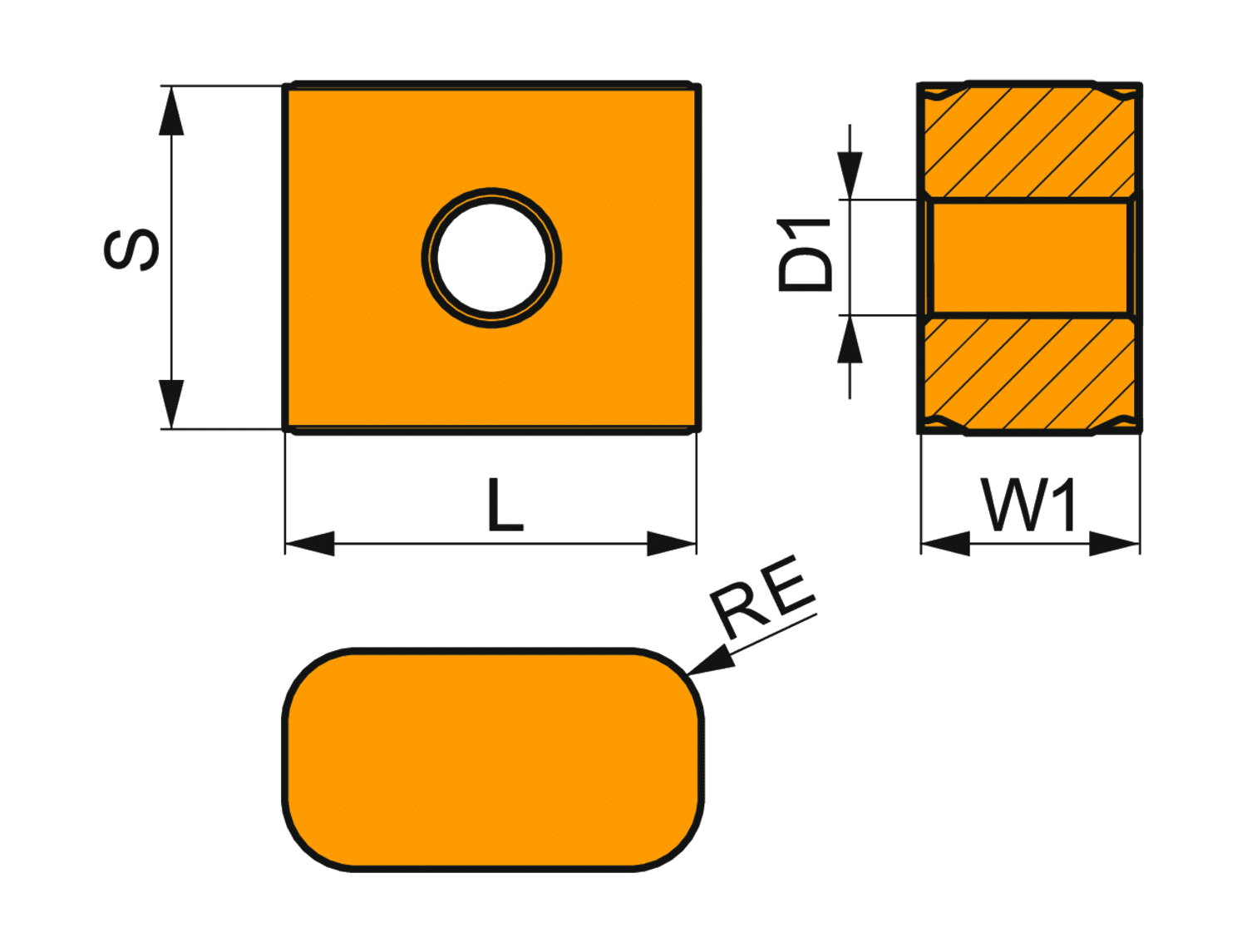

Special design negative turning insert, rectangular with a main edge length of 30mm, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges with facet, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for medium to heavy machining of steels
- Product Name ISO: LNMX 301940SN-RM:T9325
- Ordering Code ANSI: LNMX 301940SN-RM:T9325
- EDP Number: 6753313
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Corner Radius (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 19.05 |
| Insert Width (Mm.) | 12 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | T9325 |
