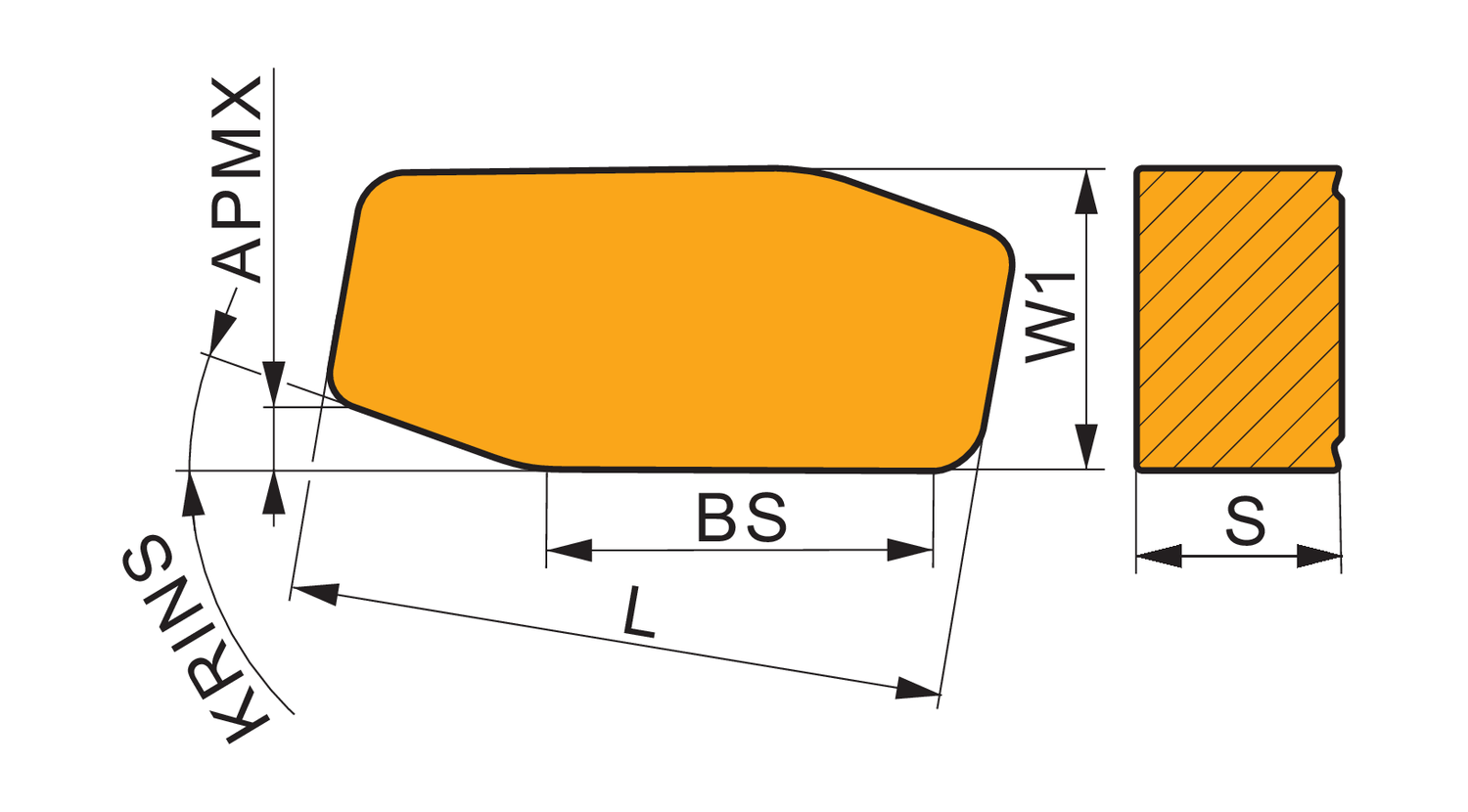

Single-sided negative barpeeling insert, rectangular with a length of 38.25mm, 12mm thick for 4mm depth of cut,, chip-breaker PR, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for steels
- Product Name ISO: LNXR 381240-PR:6630
- Ordering Code ANSI: LNXR 381240-PR:6630
- EDP Number: 6752820
- Coating: 6630
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Insert Thickness (Mm.) | 12 |
| Insert Width (Mm.) | 17.5 |
| Max Depth of Cut (In.) | 0.157 |
| Coating | 6630 |
