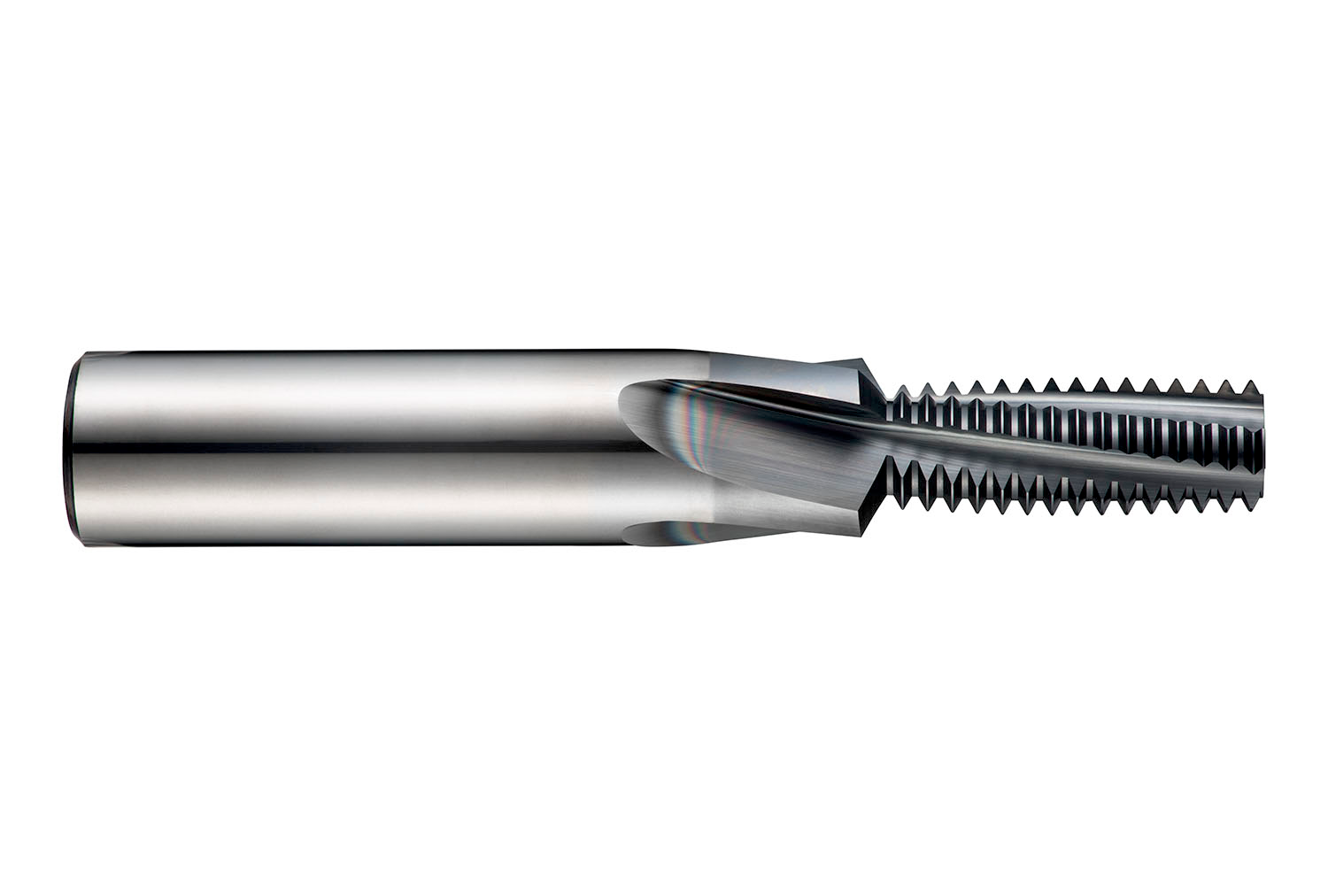

Thread and chamfer milling cutter, for ISO-Metric thread = M5 with 0.80 mm pitch, dimensions according to DORMER standard with 3 flutes, 4.1mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 11.2mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals
- Product Name ISO: J2004.1X.8
- Ordering Code ANSI: J2004.1X.8
- EDP Number: 46821290
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

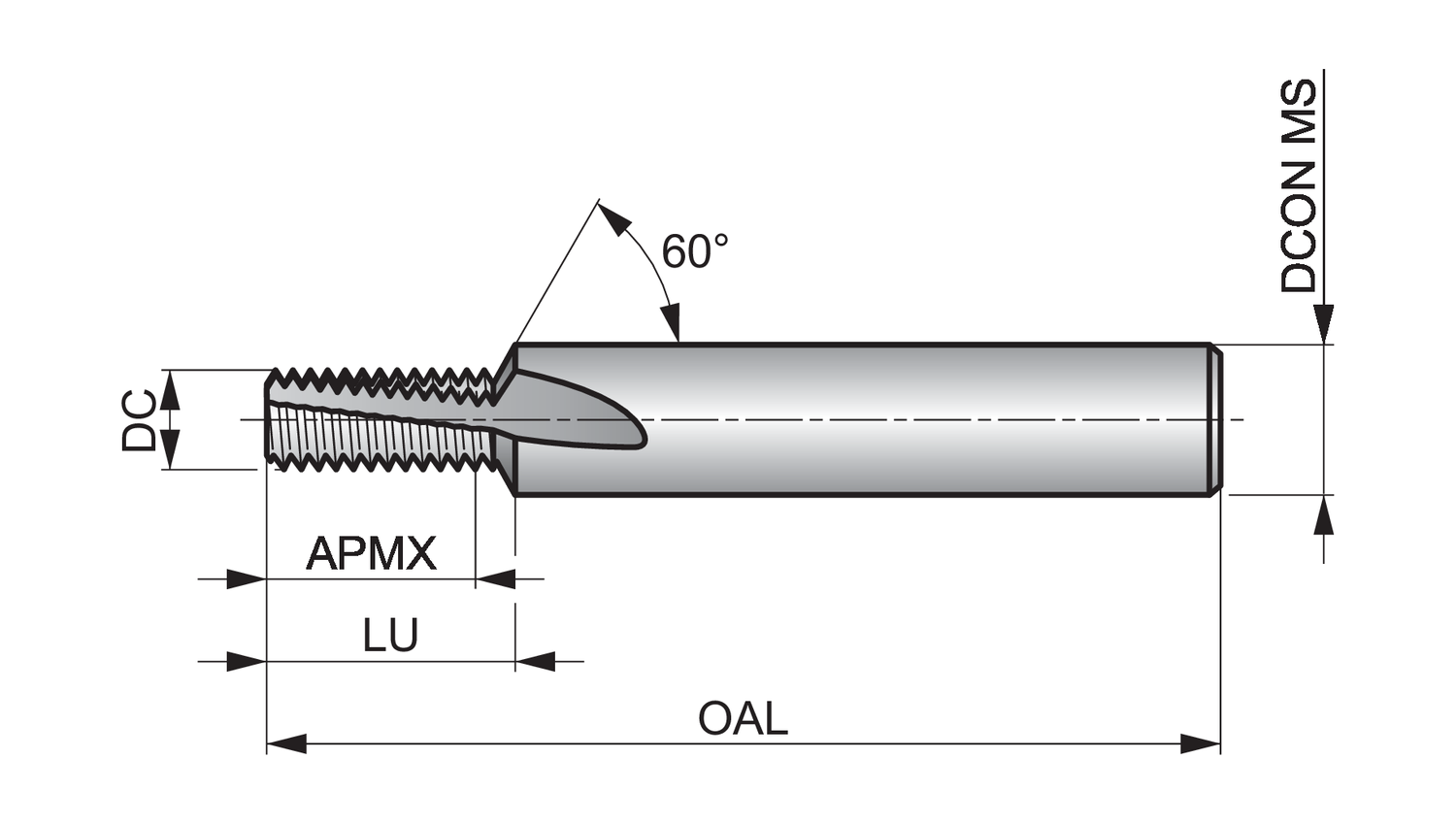

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 4.1 |
| Cutting Diameter (In.) | 0.1614 |
| Depth of Cut Maximum (Mm.) | 11.2 |
| Connection Diameter (Mm.) | 6 |
| Overall Length (Mm.) | 57 |
| Usable Length (Mm.) | 12.1 |
| Connection Diameter (In.) | 0.2362 |
| Overall Length (In.) | 2.2441 |
| Material Code | HM |
| Coating | Alcrona Pro |
| Shank | Cylindrical Shank DIN 6535 HA |
| Flute Count | 3 |
| Thread Form | M - Metric Coarse |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | M5 |
