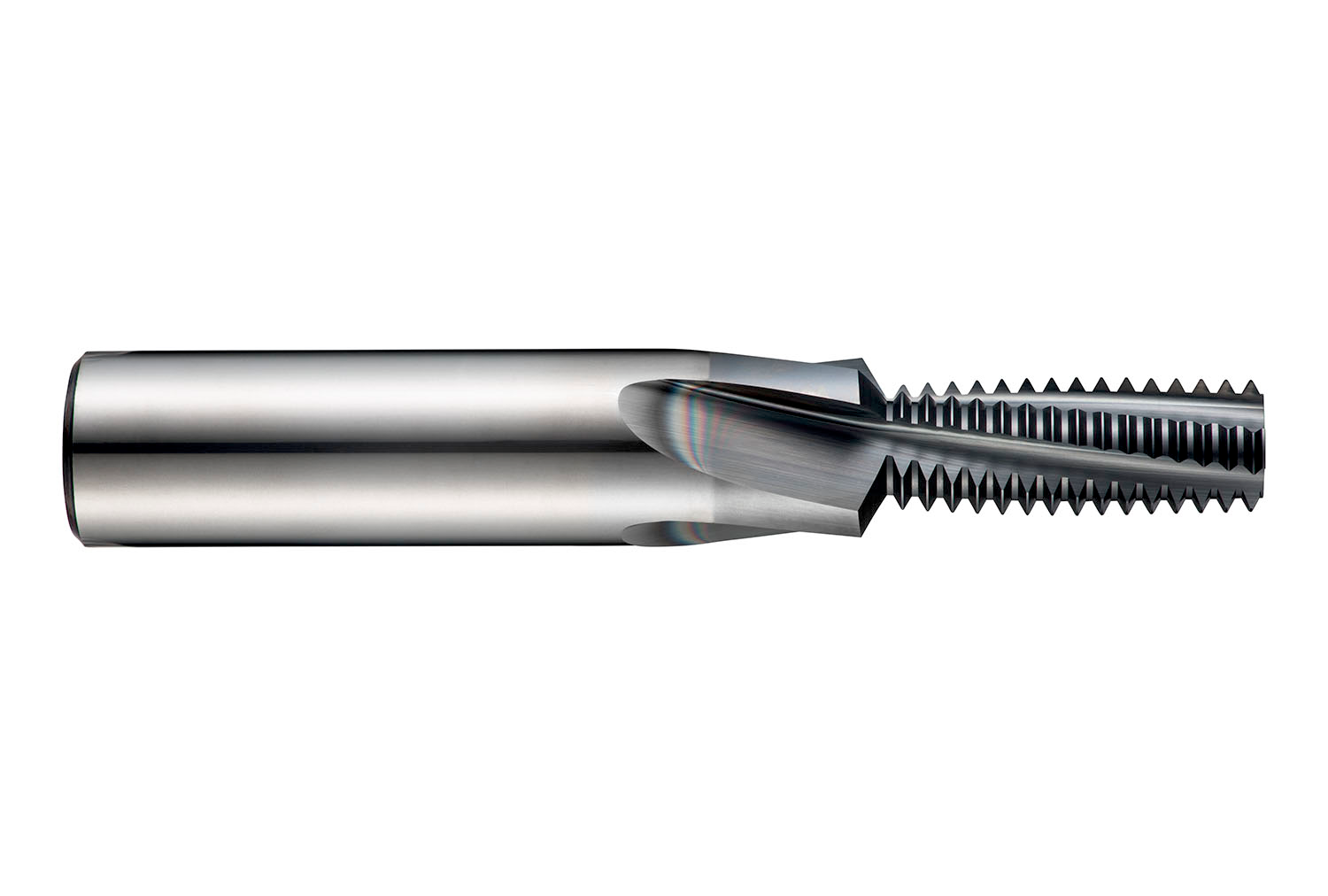

Thread and chamfer milling cutter, for ISO-Metric thread = M8 with 1.25 mm pitch, dimensions according to DORMER standard with 3 flutes, 6.5mm cutting diameter and 10mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals
- Product Name ISO: J2006.5X1.25
- Ordering Code ANSI: J2006.5X1.25
- EDP Number: 46821292
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

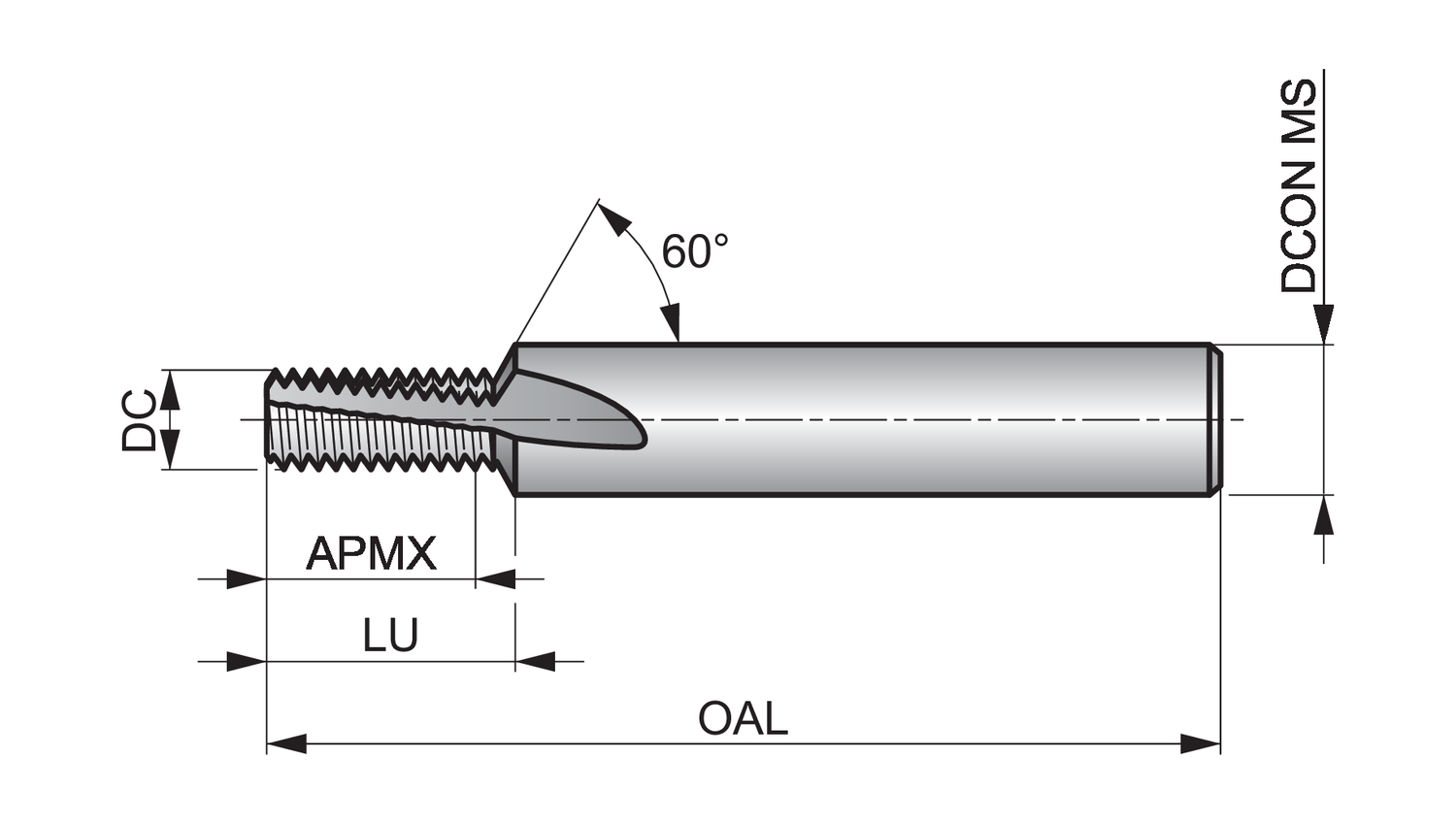

| Cutting Diameter (Mm.) | 6.5 |
| Cutting Diameter (In.) | 0.2559 |
| Depth of Cut Maximum (Mm.) | 17.5 |
| Connection Diameter (Mm.) | 10 |
| Overall Length (Mm.) | 72 |
| Usable Length (Mm.) | 19.1 |
| Connection Diameter (In.) | 0.3937 |
| Overall Length (In.) | 2.8346 |
| Material Code | HM |
| Coating | Alcrona Pro |
| Shank | Cylindrical Shank DIN 6535 HA |
| Flute Count | 3 |
| Thread Form | M - Metric Coarse |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | M8 |
