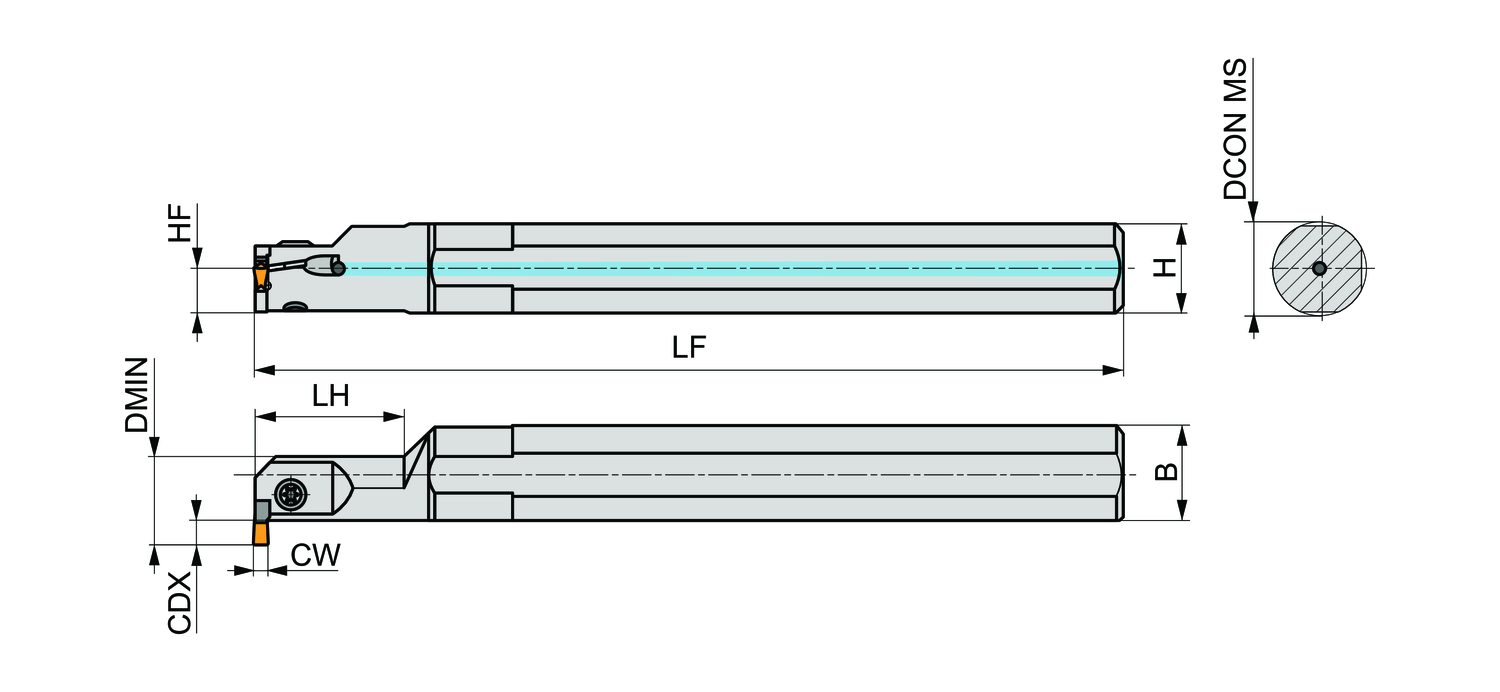

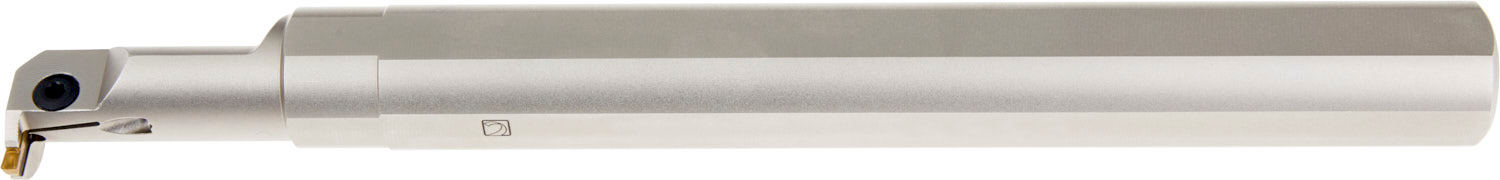

Top clamp grooving bar for holding a 0.496'' long double or single ended insert with 0.118'' cutting width (designation LCM. 0313.. ), right handed with insert perpendicular to the shank for a maximum grooving depth of 0.295'', shank diameter 1'' and tool length 10'' for internal grooving and turning
- Product Name ISO: A16S-GGHR 0313
- Ordering Code ANSI: A16S-GGHR 0313
- EDP Number: 6790493
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Inch |
Connection Diameter (Mm.) | 25.4 |
Connection Diameter (In.) | 1 |
Clamping Type | System G |
