Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to heavy machining of steels
- Product Name ISO: CNMG 120412E-M:T9415
- Ordering Code ANSI: CNMG 433-M:T9415
- EDP Number: 8183356
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Geometry | Negative |
| Coating | T9415 |
There are no reviews yet
Customers who bought this item also bought
Turning Insert - Negative - CNMG 431-SF:T6310
$9.55 excl tax
New
Insert DCGT 3-1-AS IC20
$13.20 excl tax
Turning Insert - Positive - DCGT 32.51-SF3:T6310
$13.38 excl tax
Turning Insert - Positive - DCGT 32.50.5-SF3:T6310
$14.18 excl tax
New
Insert AOMT060204R IN2530
$16.55 excl tax
New
Insert R10P.0150.1.00 TH35
$26.84 excl tax
New
End Mill - 5/16 x 13/16 x 2-1/2 6F XVaria6
$53.04 excl tax
New
End Mill - 1/2 x 1-1/4 x 3 7F R.030 XVaria7
$82.82 excl tax
New

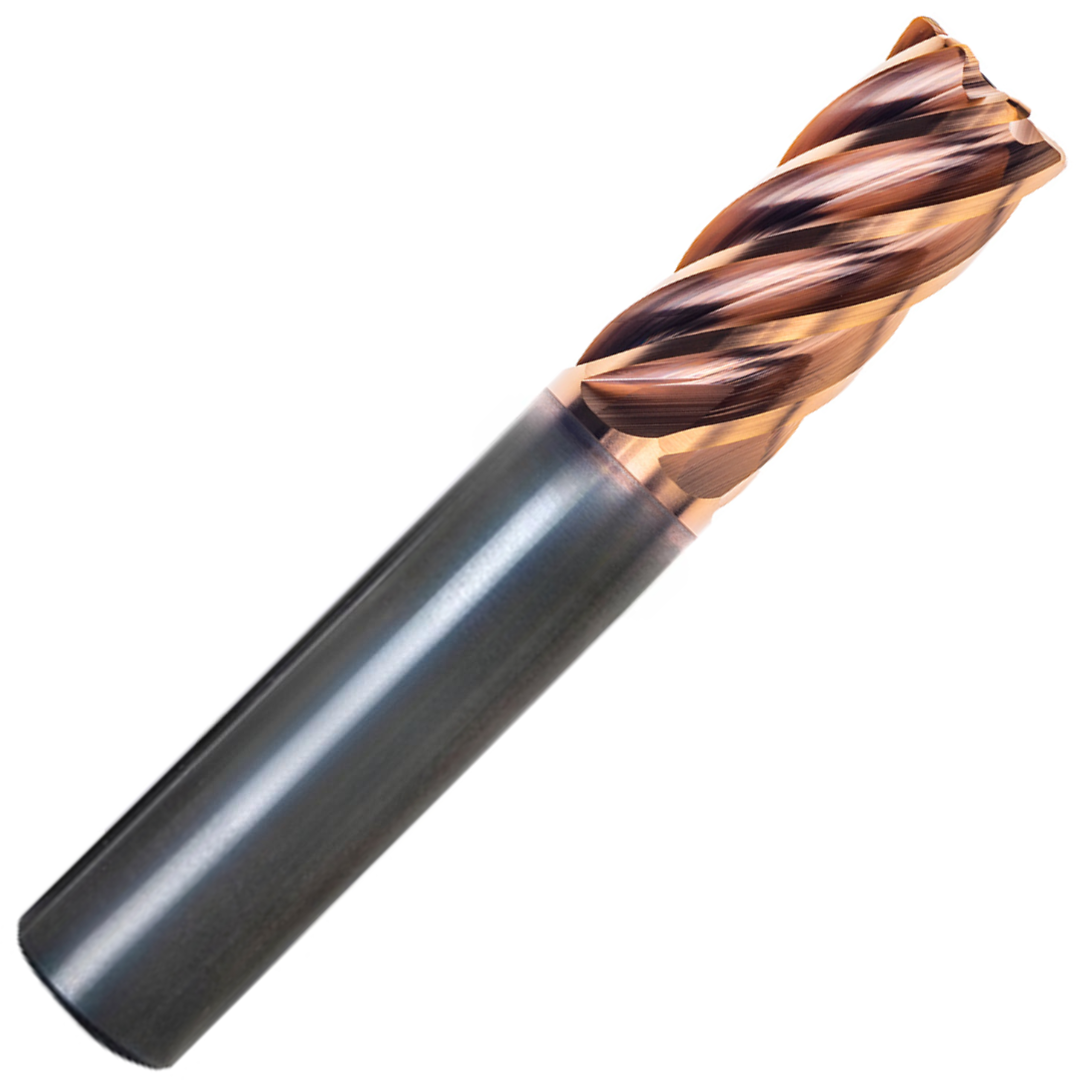

End Mill - 1/8 x 1/2 x 1-1/2 5F .015R XVaria5
$24.74 excl tax
New
End Mill - 5/16 x 3/4 x 2 6F .015R XVaria6
$46.20 excl tax
New
Center Drill #1 Carbide
$20.22 excl tax
New

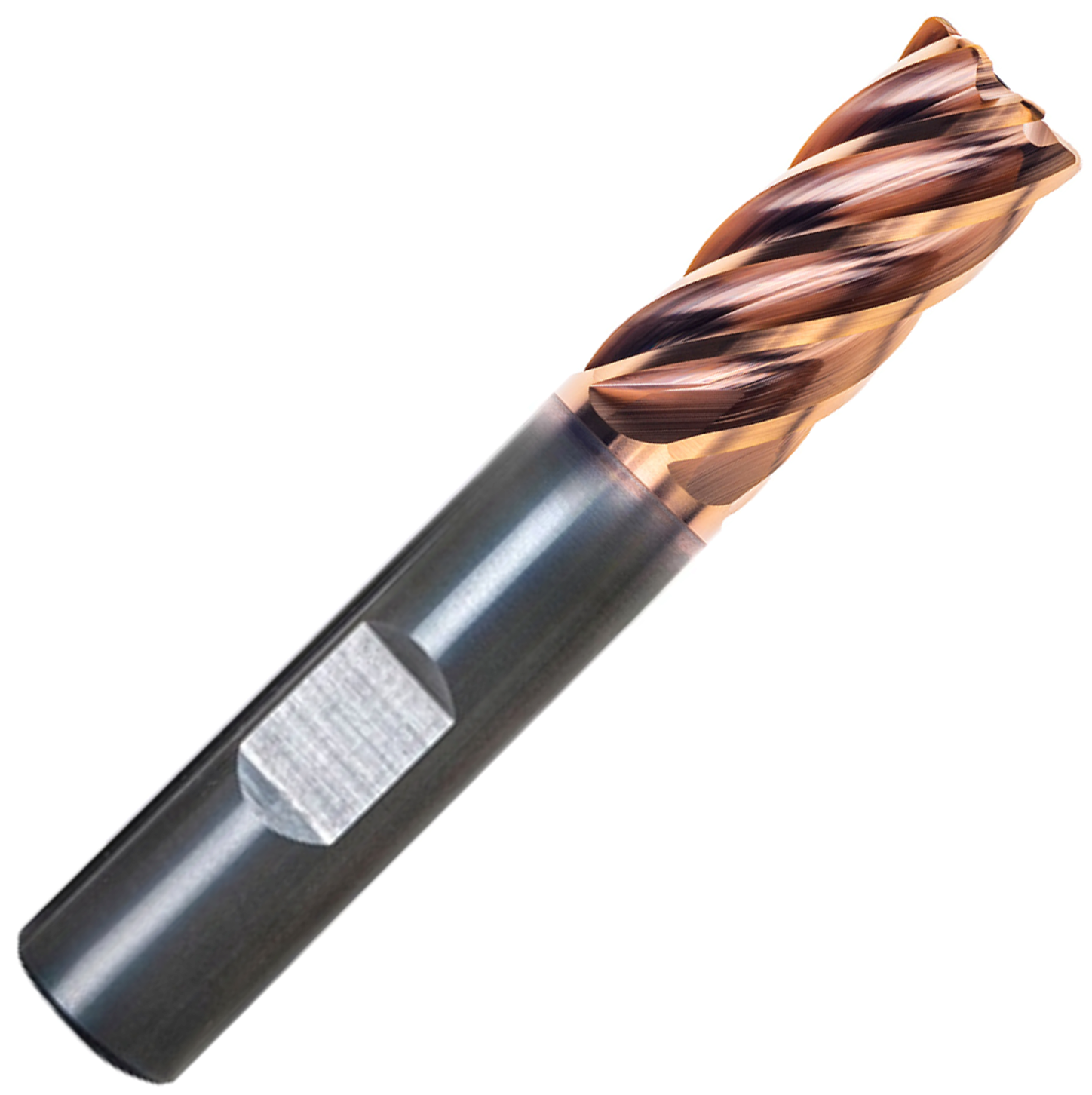

End Mill - 3/8 x 7/8 x 2-1/2 6F .030R XVaria6
