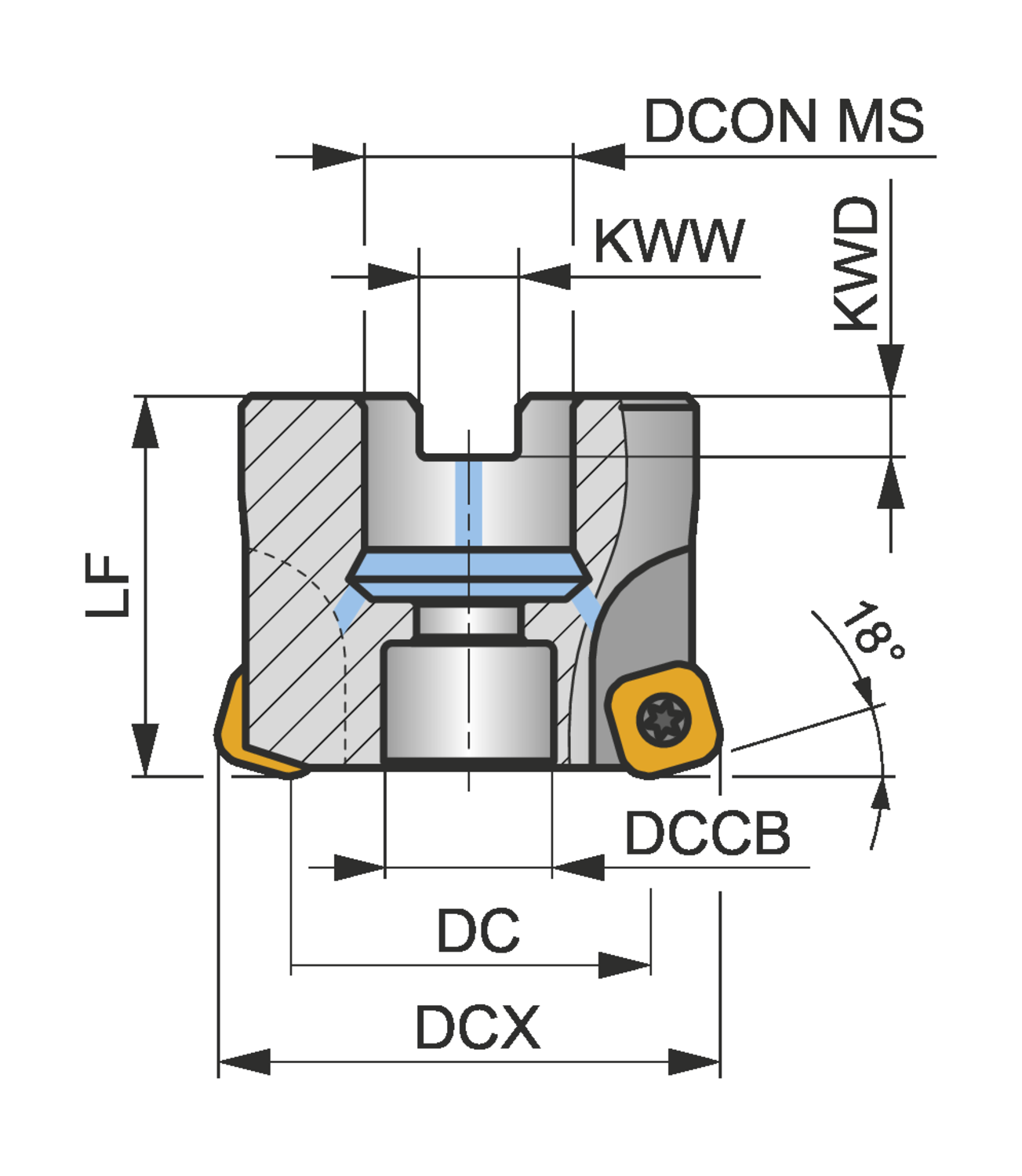

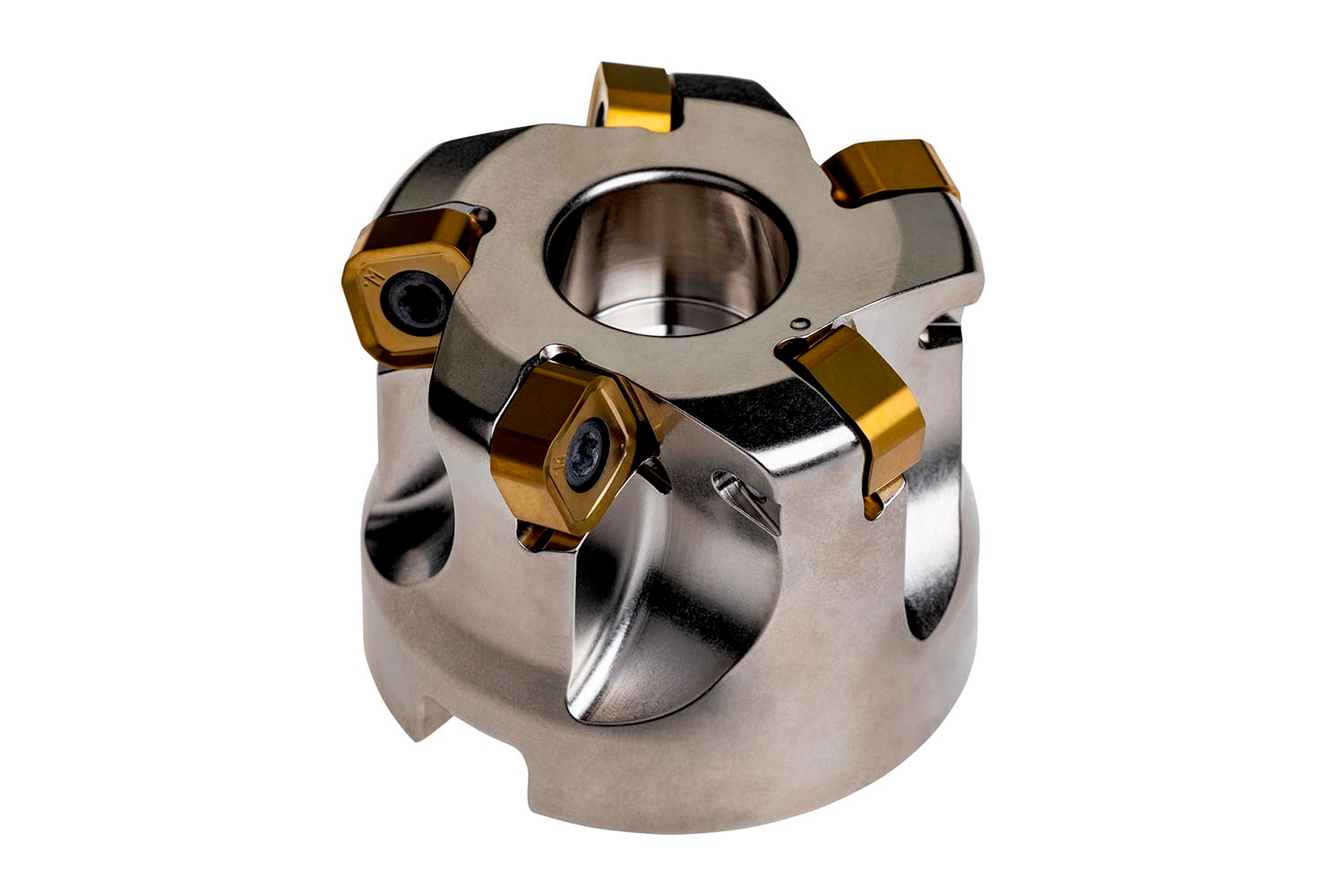

High feed cutter with double negative geometry which utilises 5 of SNGX 1104.. double-sided inserts, cutting diameter 2.000" with 18° approach angle and 0.750" connection bore according to DIN 8030-C, 1.575" protrusion length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .067"
- Product Name ISO: 200A05R-ISMOSN11-C
- Ordering Code ANSI: 200A05R-ISMOSN11-C
- EDP Number: 7800652
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 36.9 |
Cutting Diameter (In.) | 1.453 |
Connection Diameter (Mm.) | 19.1 |
Connection Diameter (In.) | 0.75 |
Shank | Shell Mill DIN 8030 A |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
