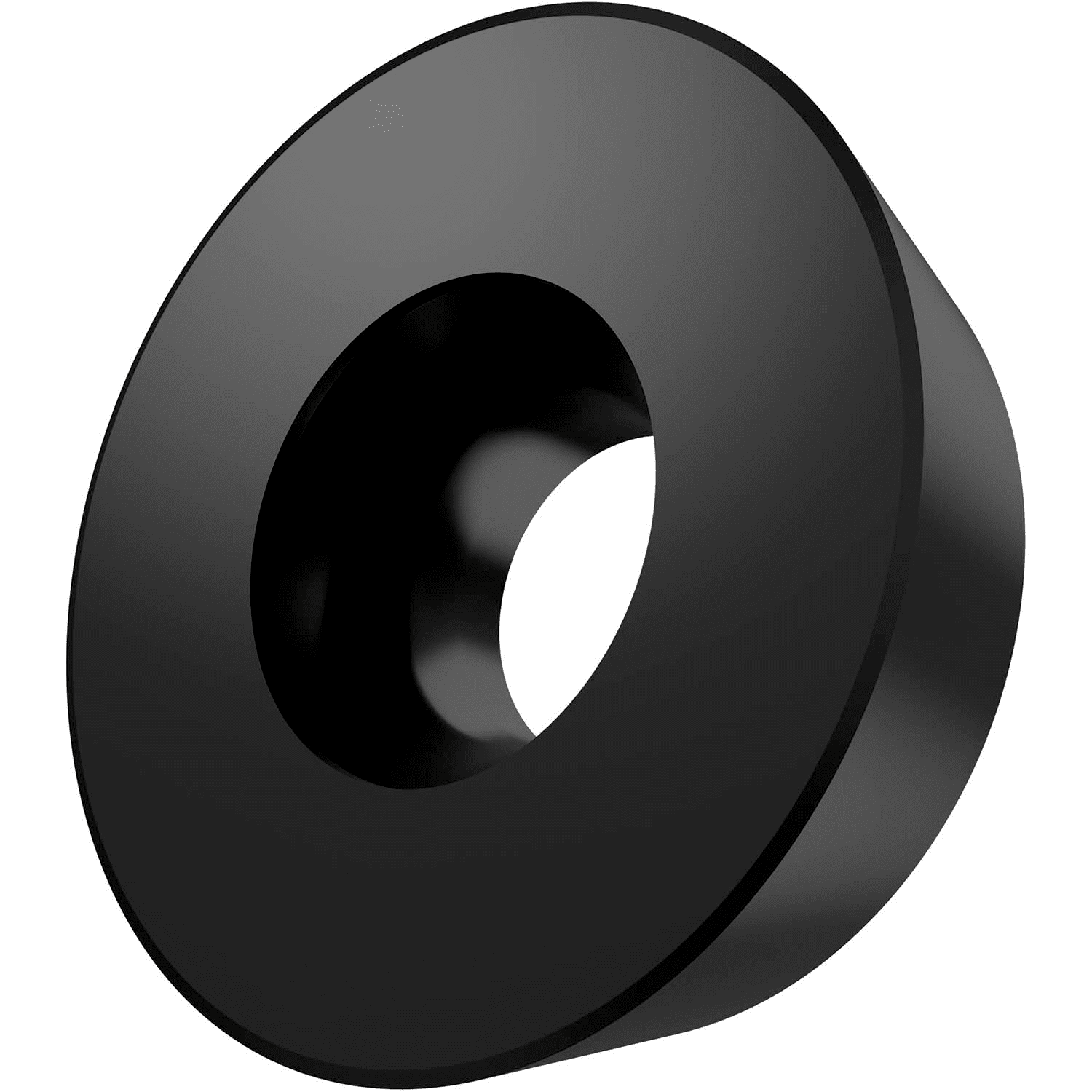

Single-sided milling insert RDHX 1604, round for a maximum depth of cut of .1575", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8345 PVD coated WC-Co carbide for machining with copy face mills SRD16
- Product Name ISO: RDHX 1604MOT:M8345
- Ordering Code ANSI: RDHX 1604MOT:M8345
- EDP Number: 6755967
- Coating: M8345

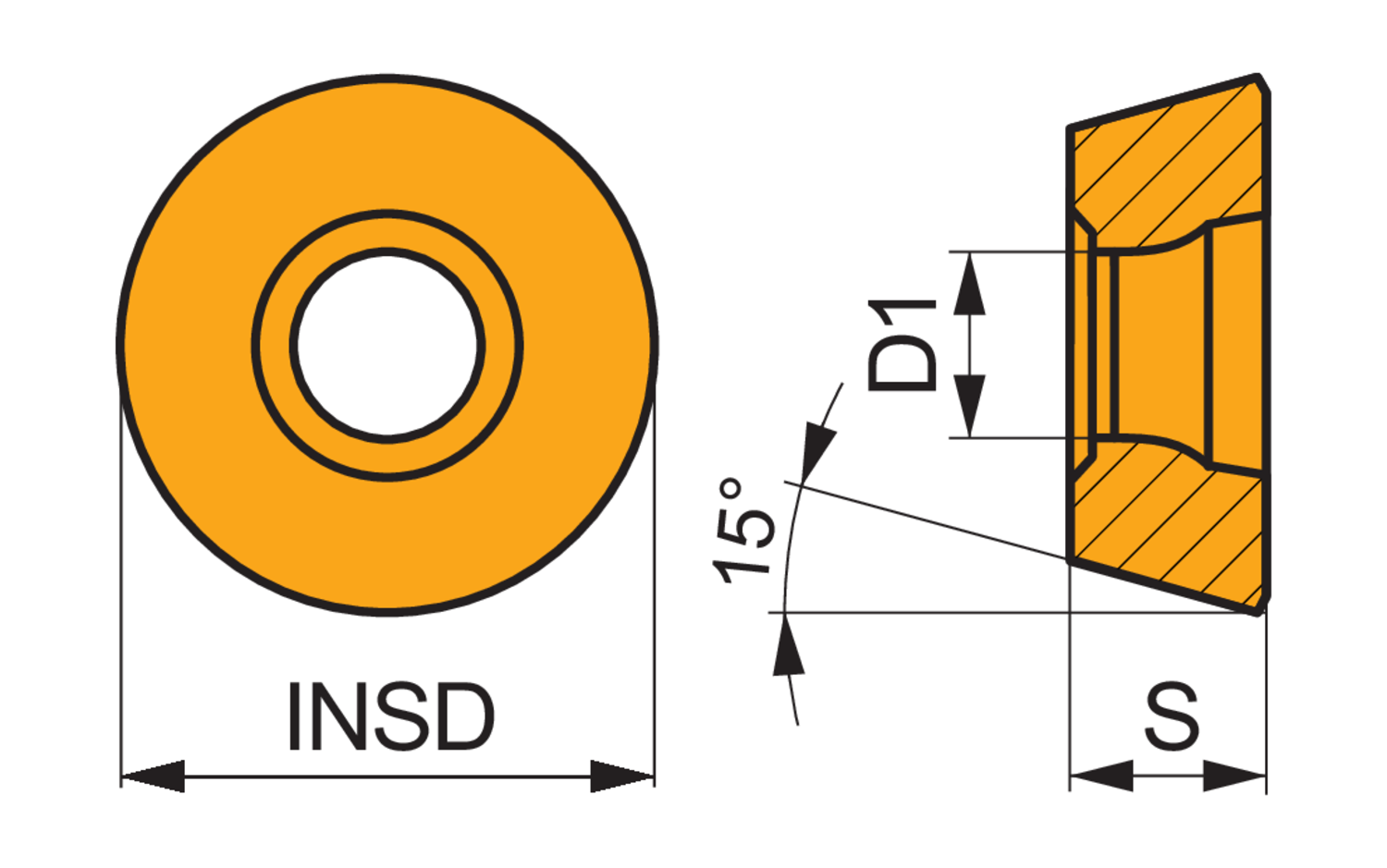

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 5.2 |
| Insert Dia. (Mm.) | 16 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.157 |
| Coating | M8345 |
