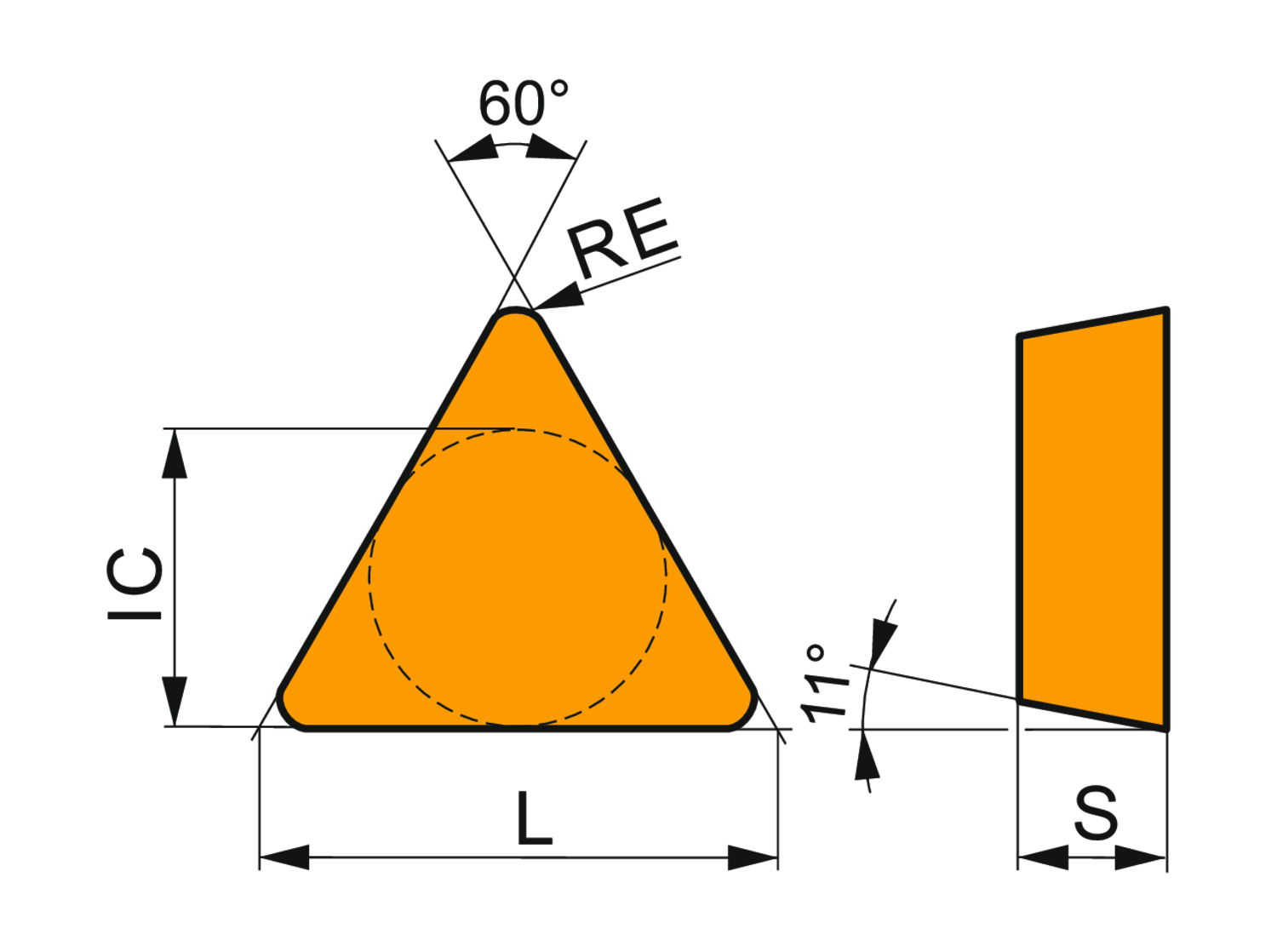

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 15.875", 6.35" thick, 1.6" nose radius, indexing accuracy according to ISO-tolerance class-U with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide, for medium to fine machining
- Product Name ISO: TPUN 270616S:6640
- Ordering Code ANSI: TPU 544S:6640
- EDP Number: 6751573
- Coating: 6640
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7.8 |
| Corner Radius (Mm.) | 1.6 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.307 |
| Insert Geometry | Positive |
| Coating | 6640 |
